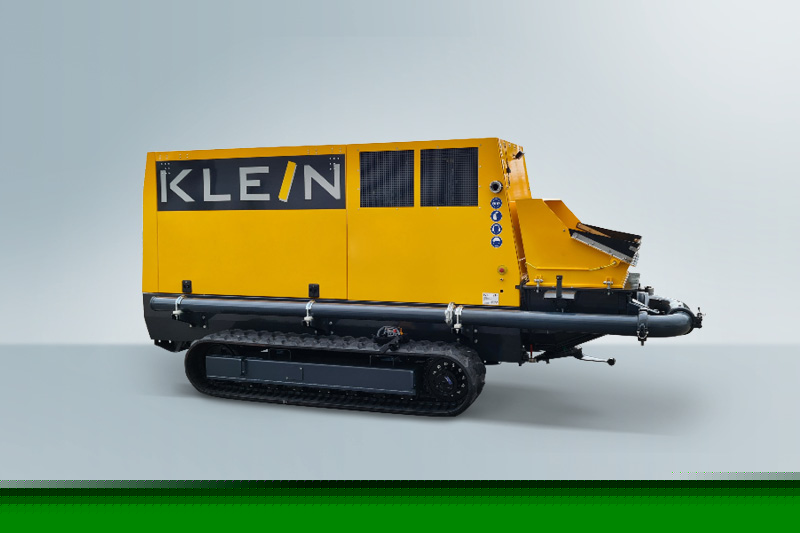

Crawler concrete pumps
Series KTP 220
The 220 series chain concrete pumps are always used when performance is required. With a delivery rate of 65 to a maximum of 171 m³/h, the pumps are ideal for filling large boreholes as part of construction and civil engineering projects, for example. A powerful crawler chassis keeps the pump mobile even on difficult ground. Pumpable materials up to a grain size of 32 mm can be transported. A diesel or emission-free electric motor is available for the drive.
| Max. theoretical delivery rate | 65-145 m³/h |
|---|---|
| Max. theoretical concrete pressure | 64-130 bar |
| Volume of the concrete funnel | 500-800 liters |
Product advantages
- large funnel (600 l) with rubber collar and protective grill
- high performance and flow rates
- made in Germany
- improved accessibility to maintenance points
- very easy to service and low maintenance
- very quiet, electric drive
- also available with diesel engine
- KTP 220-65
- KTP 220-70
- KTP 220-80
- KTP 220-85
- KTP 220-110
- KTP 220-115
Technical data KTP 220-65
| Max. theoretical delivery rate | 65 m³/h |
|---|---|
| Max. theoretical concrete pressure | 95 bar |
| Volume of the concrete funnel | 600 liters |
Technical data KTP 220-70
| Max. theoretical delivery rate | 71 m³/h |
|---|---|
| Max. theoretical concrete pressure | 100 bar |
| Volume of the concrete funnel | 600 liters |
Technical data KTP 220-80
| Max. theoretical delivery rate | 81 m³/h |
|---|---|
| Max. theoretical concrete pressure | 100 bar |
| Volume of the concrete funnel | 600 liters |
Technical data KTP 220-85
| Max. theoretical delivery rate | 85 m³/h |
|---|---|
| Max. theoretical concrete pressure | 100 bar |
| Volume of the concrete funnel | 600 liters |
Technical data KTP 220-110
| Max. theoretical delivery rate | 110 m³/h |
|---|---|
| Max. theoretical concrete pressure | 95 bar |
| Volume of the concrete funnel | 600 liters |
Technical data KTP 220-115
| Max. theoretical delivery rate | 115 m³/h |
|---|---|
| Max. theoretical concrete pressure | 95 bar |
| Volume of the concrete funnel | 600 liters |
Accessories
Radio remote control
A valuable accessory for controlling our machines: our pumps can also be easily operated remotely using a radio remote control. The radio control is characterized by simple, intuitive operation, which optimally supports the machine operator when manoeuvring a machine.
High-pressure cleaner
Simple and effective cleaning of pump systems with our powerful high-pressure cleaner. Leave your machine looking clean again! The small high-pressure cleaner removes stubborn dirt from machines with very little water consumption
Compressor
The compressor is used to clean the delivery lines of a pump easily and thoroughly. It ensures that the lines are free and therefore that the machine runs smoothly.
Pipe reducer
Always the right connection: our pipe reducer acts as an adapter between two pipes with different diameters. Use our pipe reducer whenever you need a secure connection from a pipe with a large diameter to one with a small diameter.
Central lubrication system
So that everything always runs smoothly: Our central lubrication system for pump machines ensures that all bearings are always adequately supplied with grease. Optimum lubrication of highly stressed components prevents wear and ensures that machine downtimes are reduced to a minimum.
